ULTIMATE VINSSISARJA MITSUBISHI L200 2015-

See bundle

Price incl. VAT 24%

Product identifier: 16-3880-ULT

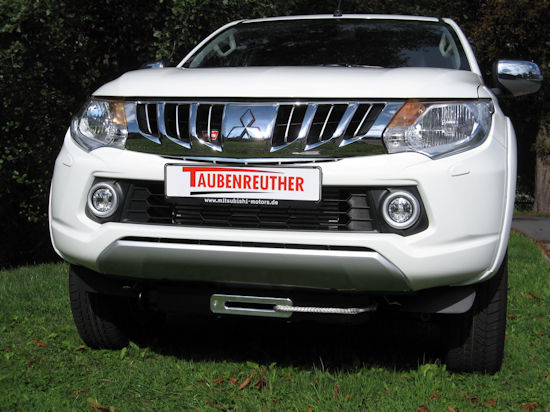

Mitsubishi L200 vinssisarja Warn XDC sähkövinssillä

Helposti asennettava vinssisarja Mitsubishi L200. Siisti ja huomaamaton asennus puskurin sisään. Saksalaisella tarkkuudella suunnitellut yksityiskohdat helpottavat ja nopeuttavat asennusta.

Warn XDC Vinssi – tehokas

Warn XDC on suunniteltu vaativaan käyttöön. Sen moottori on varustettu lämpösuoja kytkimellä, joka pysäyttää toiminnan ylikuumenemis tilanteissa ja jatkaa toimintaa jäähdyttyään. Vinssi on vesitiivistetty ja siinä on kestävä kontaktori ohjaus perinteisten solenoidien sijaan. Toimitukseen kuuluu käytännöllinen langaton kauko-ohjain.

Product identifier: 16-3880

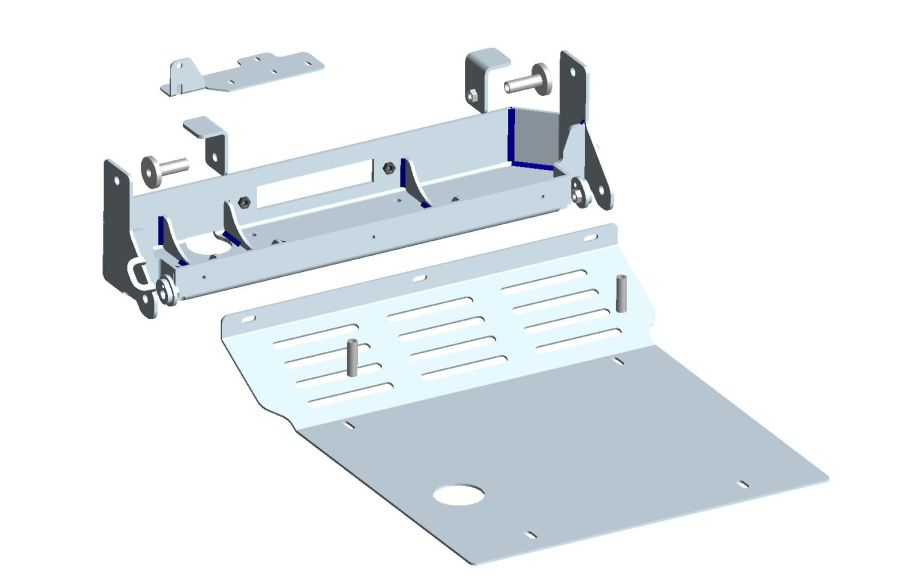

VINSSIN ASENNUSSARJA MITSUBISHI L200 2015-

Product identifier: 74700

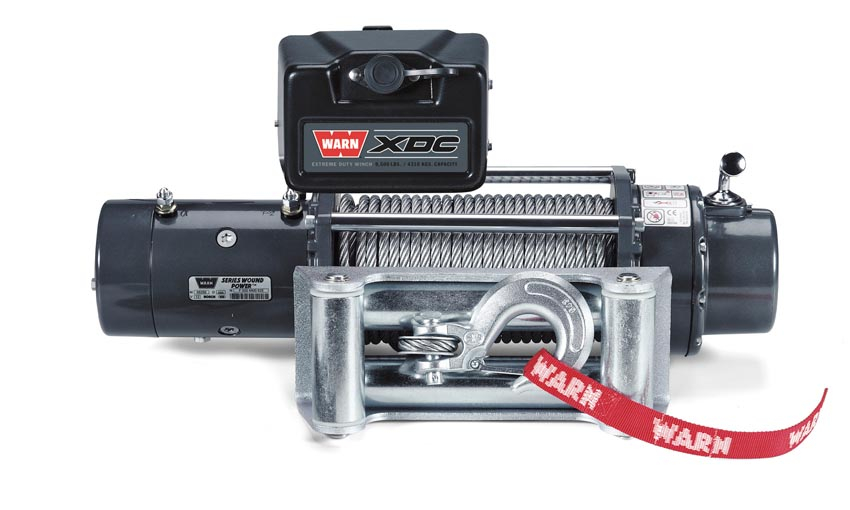

Warn XDC Electric Winch 12V - 4310 kgf - Wire Rope

WARN XDC WINCH - Fast, Powerful and Low Profile

The fast, powerful Warn XDC winch is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. It has a compact shape to fit a wide-variety of bumpers. A 9,500 lb. (4,310 kg.) capacity rating and an extreme duty cycle deliver long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor's temperature becomes elevated beyond its normal operating range.

Product identifier: 88750

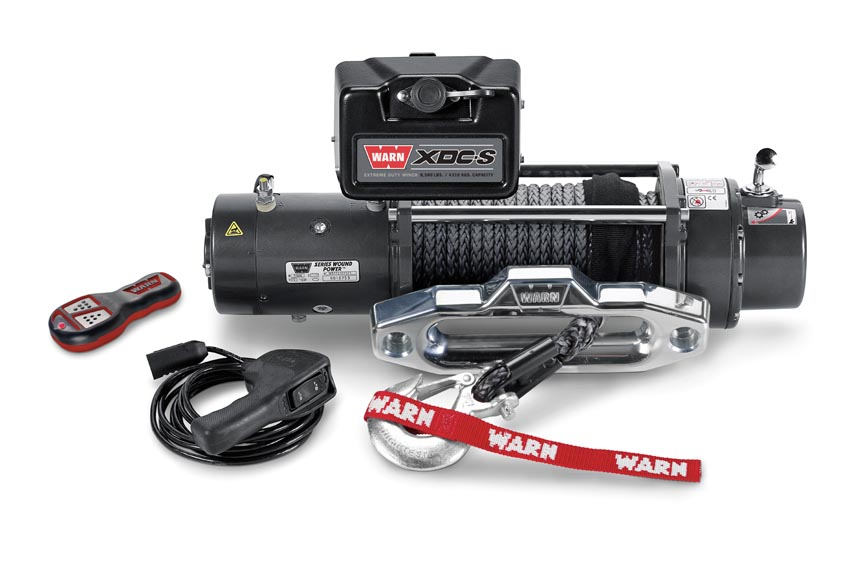

Warn XDC-S Electric Winch 12V - 4310 kgf - Synthetic Rope

WARN XDC-S WINCH - Fast, Powerful and Includes Synthetic Rope

A winch that will perform in the harshest environments. The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing. Warn XDC-S winch also comes with a hand-held wireless remote.

Product identifier: 90394

REMOTE SOCKET EXTENSION KIT

Product identifier: 15-905E

RULLAKIDAN SUOJUS

Description

  • Luotettava ja vahva Series Wound sarjakäämitty moottori.
  • Erinomainen vaihteiston, rummun ja moottorin tiivistys pitää lian ja veden ulkopuolella.
  • Automaattinen jarru mahdollistaa hallitun ohjauksen vinssauksen aikana.
  • Kontaktori ohjaussarjan tarjoaa pitkät käyttöjaksot vaativissakin vinssauksissa.
  • 3-vaiheinen planeettapyörästö. Osoittautunut luotettavaksi ja kompaktiksi rakenteeksi.
  • Sisältää sekä johdollisen ja johdottoman kauko-ohjaimen.
  • Kiiltävä tumman harmaa jauhemaalaus. Antaa erinomaisen korroosionkestävyyden.
LISÄTIETOJA XDC JA XDC-S
Nimellinen vetokyky: 4310kgf (9500lbf)
Moottori: Series wound – sarjakäämi 12V DC
Ohjaus: Kontaktori
Käyttökytkin: Johdollinen 3,7m kauko-ohjain
Vaihteisto: 3-vaiheinen planeettapyörästö
Välityssuhde: 156:1
Kytkin: Mekaaninen rummun vapautus
Jarru: Automaattinen kartiojarru
Rummun mitat: 68mm / 230mm
Paino: XDC 39,5 kg, XDC-S 30,8 kg
Köysi XDC: Teräsvaijeri 8mm x 30m
Köysi XDC-S: Warn Spydura synteettinen köysi 9,5mm x 24,4
Köydenohjain: XDC rullakita, XDC-S liukukita
Suositeltu akku: 650 CCA
Akkujohdot: 1,8m
Pintakäsittely: Kiiltävä tumman harmaa jauhemaalaus

12V DC toimintakuvaus (vaijerin ensimmäinen kerros)
Vetokyky kg Vaijerin nopeus m/min Moottorin sähkövirta A Vetokyky vaijeri kerroksittain kg
0 8,8 60 1/4313
910 4,1 144 2/4027
1810 3,1 197 3/3595
2720 2,4 250 4/3359
3630 1,9 315 5/3150
4310 1,7 358  –

Additional information

Make

VINSSIN ASENNUSSARJA MITSUBISHI L200 2015-

Country of manufacture
Unit

Piece

Make

Freight weight

Warn XDC Electric Winch 12V - 4310 kgf - Wire Rope

Unit

Piece

Country of manufacture

US

Package

Carton

Freight weight

40,9

Package dimensions

69x48x21

Nimelliskapasiteetti

Sealing

Full

Compliance with standards

CE Compliant

Warranty

2 Year

Välityssuhde

156:1

Winch model

Product group

Vinssisarja

Warn XDC-S Electric Winch 12V - 4310 kgf - Synthetic Rope

Unit

Piece

Country of manufacture

US

Package

Carton

Freight weight

3,25

Package dimensions

69x48x21

Nimelliskapasiteetti

Sealing

Full

Compliance with standards

CE Compliant

Warranty

2 Year

Välityssuhde

156:1

Winch model

Product group

Vinssisarja

REMOTE SOCKET EXTENSION KIT

Country of manufacture

US

Unit

Piece

Package

Carton

Freight weight

0,5

Package dimensions

RULLAKIDAN SUOJUS

Unit

Piece

Package

Unpacked

Freight weight
Package dimensions
Product group
